Guanhu sub district office is located in the east of Longhua District, with a total area of 25.65 square kilometers and a permanent resident population of more than 200000 people. Recently, in response to the policy of community basic cultural construction and in-depth implementation of the spirit of the Fourth Plenary Session of the 19th CPC Central Committee, Guanhu sub District Office introduced huabangying outdoor LED display screen, which was installed in the area with frequent flow of personnel, so as to promote the positive energy and public security of some communities Benefit activities, street office procedures, etc., benefit the people.

Huabangying optoelectronics is lucky to be the whole service provider of this led display screen project. From the design of wall installation scheme in the early stage, project quotation, product selection, to the implementation and acceptance after installation, huabangying optoelectronics insists on completing the project construction according to the requirements of Guanhu sub district office.

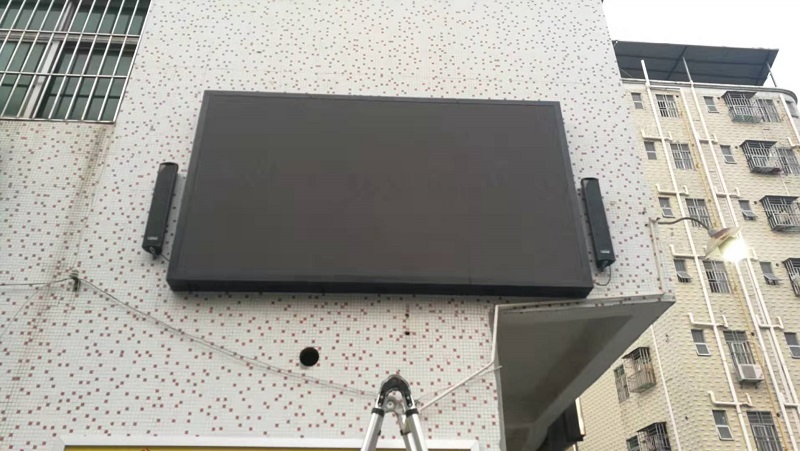

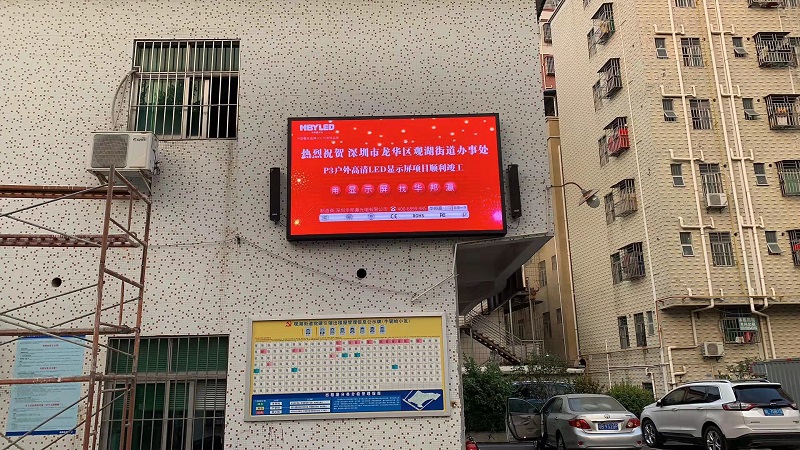

As built drawings:

This LED display project parameter details

Contractor: Shenzhen Huabangying Optoelectronics Co., Ltd.

Splicing unit: HBY-YN3

Module size: 192*192mm

Pixel pitch: 3mm

Brightness: 4500-7500nits

Contrast ratio: 7000:1

Power: 420W

Refresh rate: 1920Hz

Full screen resolution: 111111dot/m2

Service life: 100000h

Installation method: hanging installation

Application scenario: outdoor display
